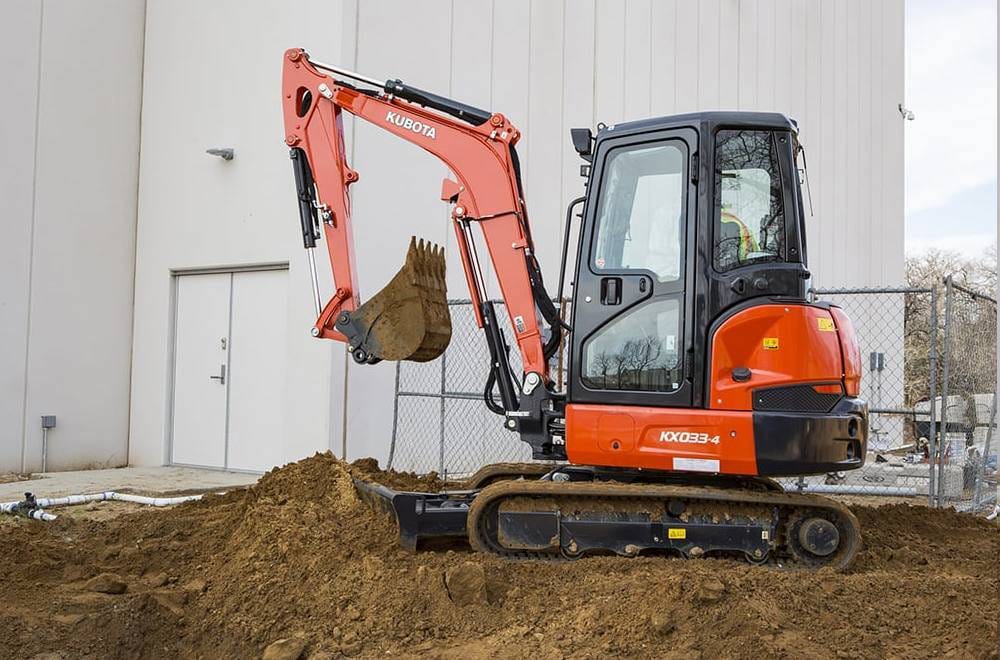

With an available Extended Dipper and optional hydraulic angle blade, the Kubota KX033-4 is unlike any compact excavator you’ve ever seen before. Dig comfortably, with a spacious cab, and make sure that you can get the job done the right way, every time. Once you sit down behind the controls of the KX033-4, you’ll never want to step away.
Features
- Clean Running Kubota Tier 4 Engine: Kubota excavators are all powered by Kubota Tier 4 emission engines. The modern engine design maximizes digging and lifting performance, delivers minimized noise and vibration and meets the latest engine emission regulation.
- Two Speed Travel: All Kubota excavators have a two speed drive that allows for efficient machine maneuverability and backfill operations.
- Comfort & Convenience: A spacious operator station designed for greater comfort, with a fully flat floor for more legroom, Digital panel with easy access, simple settings and easy-to-read indicators and alerts, Easy cab entry and exit, Easy-open front slide window, Wrist rest, Cup holder and Optional cab
- Changeable Control Pattern: Convenient Two-pattern Selection System (TPSS) allows you to change between ISO and SAE operating patterns with a quick flip of the TPSS switch – without tools or leaving your seat.
- Auxiliary: Proportional flow control of auxiliary circuit (AUX1) and maximum oil flow setting – you can operate a larger variety of auxiliary attachments than ever before; Proportional AUX flow switch – a convenient bi-directional switch enables easy operation of hydraulic thumbs and other hydraulic attachments such as augers and breakers
- Serviceability: Front pin bushings to help maximize durability; Centralized swivel bearing lubrication; Protected cylinder hoses; Steel hood panels; One-sided engine maintenance; Wide hood openings for easy access to engine and other vital components .
- Extendedable Dipper: Increase the total working range of the popular KX033-4. The extendable dipper extension increases the reach by 16” and dig depth by 20” compared to the standard KX033-4.
- Angle Blade Optional Hydraulic Angle Blade: Save time and work more efficiently. With a simple movement of the new thumb operated rocker switch on the dozer lever, the hydraulic angle blade (optional) can be angled to the right or left to push soil to the side as the machine moves forward, eliminating the need for repetitive repositioning at right angles when backfilling trenches.
Engine
- Type of ROPS / OPG (TOP Guard, Level I): Canopy / Cab
- Type of tracks: Rubber / Steel
- Model: Kubota D1703M-DI-E4
- Output (SAE J1995 gross): 24.8 HP (18.5 kW) / 2200 RPM
- Output (SAE J1349 net): 23.2 HP (17.3 kW) / 2200 RPM
- Displacement: 100.5 cu. In. (1647 cc)
Dimensions
- Overall length: 15 ft. 6 in. (4730 mm)
- Overall height: 8 ft. 1 in. (2480 mm) / 8 ft. 1 in. (2470 mm)
- Overall width: 5 ft. 1 in. (1550 mm)
- Min. ground clearance: 11.4 (290 mm)
- Boom offset Right / Left: 1 ft. 4.1 in. (410 mm) / 1 ft. 5.7 in. (450 mm)
- Blade lift Upper / Low: 1 ft. 2.4 in. (365 mm) / 1 ft. 2.8 in. (375 mm)
Hydraulic System
- Pump capacity: 10.5 GPM (39.6 L/min) x 2 / 5.5 GPM (20.9 L/min) x 1
- Auxiliary hydraulic flow: 15.8 GPM (60 L/min)
- Max. breakout force Bucket / Arm: 8138 lbs (3694 kgf) / 3867 lbs (1756 kgf)
Drive System
- Travel speed Low / High: 1.9 mph (3.0 km7h) / 2.9 mph (4.6 km/h)
- Max. traction force Low Speed: 6091 lbs (2763 kgf)
- Tumbler distance: 5 ft. 5.6 in. (1665 mm)
- Crawler length: 6 ft. 10.6 in. (2100 mm)
- Shoe width Rubber / Steel: 11.8 in. (300 mm)
- Ground contact pressure Canopy Rubber / Steel: 4.365 psi (0.307 kgf/cm2) / 4.482 psi (0.315 kgf/cm2)
- Ground contact pressure Cab Rubber / Steel: 4.559 psi (0.321 kgf/cm2) / 4.676 psi (0.329 kgf/cm2)
Swing System
- Unit swing speed: 8.9 RPM
- Boom swing angle Left: 70 deg.
- Boom swing angle Right: 48 deg.
Blade
- Dimensions Width: 5 ft. 1 in. (1550 mm)
- Dimensions Height: 1 ft. 1.5 in. (345 mm)
- Max. lift above ground: 14.4 in. (365 mm)
- Max. drop below ground: 14.8 in. (375 mm)
Other Specifications
- Hydraulic oil (reservoir/system): 11.8 gal. (44.6 L) / 16.1 gal. (61 L)
- Fuel reservoir: 12.4 gal. (46.9 L)
- Operating weight Canopy Rubber / Steel: 7420 lbs (3365 kgf) / 7616 lbs (3454 kgf)
- Operating weight Cab Rubber / Steel: 7742 lbs (3511 kgf) / 7938 lbs (3600 kgf)
NOTES:
Kubota Tractor Corporation reserves the right to change the stated specifications without notice.
Power (HP/KW) and other specifications are based on various standards or recommended practices. For your safety, Kubota strongly recommends the use of a Rollover Protective Structure (ROPS) and seat belt in almost all applications.
