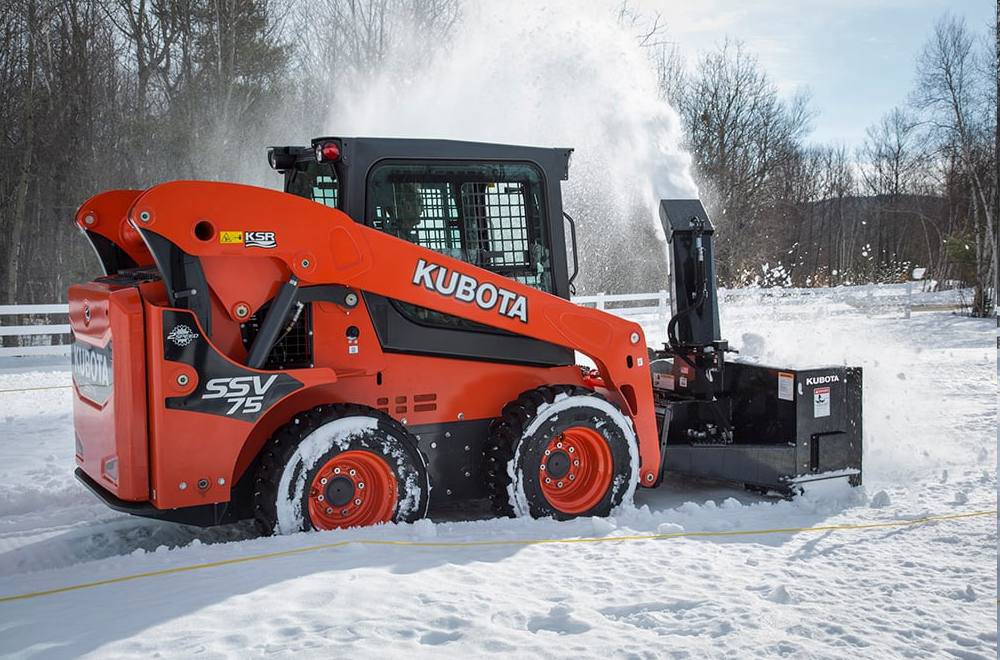

2024 Kubota SSV75

Features

Standard 2-speed And Suspension Seat: No need to buy extra – every Kubota Skid Steer comes standard with two-speed and a suspension seat. Move from 7 mph to over 11 mph at the flick of a switch.
Widest Cab In The Market With Roll-up Door: The wider cab entrance, with a 36″ side-screen to side-screen width, allows operators to comfortably pivot when looking to their rear. When coupled with a rear view mirror, rear visibility is at its maximum.
Easy Maintenance: Fuel tank mounted inside heavy duty rear door to promote easy maintenance. The unique design of mounting the fuel tank on the rear door results in 26 gallons of volume removed from the engine compartment. Now mounted on a standard heavy duty door without louvers or cut-outs, the additional free space in the engine compartment promotes the easy access and maintenance to daily checks and services.
Loader Arm Design: Rugged Loader Arm Design with Long Reach and High Bucket Hinge Pin Height. Borrowed from Kubota’s Compact Track Loaders, this proven loader arm design with vertical geometry can push and dig as good as a radial machine. It’s reinforced in all the right areas, including critical connections to the coupler and rear cross bar. Designed to be a work horse.
Available With Low Effort Hydraulic Pilot Controls: Work next to home structures and curbs with confidence. Different from Electro-Hydraulic Controls, these hydraulic controls provide maximum feel and precision – with no adjustments or settings necessary. Start moving when you think you’re going to start, and stop moving when you think you’re going to stop. The Kubota exclusive ergonomically designed grips have all the necessary buttons and switches within reach.
Reliable Kubota Engines: A loyalty hallmark, Kubota Engines have proven their worth time and time again. Kubota is the largest manufacturer of under-100 HP engines. You can find them in all of our diesel engine powered units – and even those of some of our competitors who take advantage of its reputation.

Engine

Engine Model: V3307-CR-TE4
Emission Certification: Tier 4
Gross HP: 74.3 HP (55.4 kW) @ 2600 RPM
Displacement: 203.3 cu. in. (3331 cc)
Cylinders: 4
Bore x Stroke: 3.8 in. (94 mm) × 4.8 in. (120 mm)
Aspiration: Turbocharged
Operator Station: Open Cabin / Closed Cabin
Net HP (SAE J1349): 71.6 HP (53.4 kW) / 2600 RPM
Peak Torque @1500 rpm: 196 lbf-ft. (265 Nm)

Loader Performance

Rated operating capacity-50% tipping load: 2690 lb. (1220 kg)
Tipping Load: 5380 lb. (2440 kg)
Breakout Force – Bucket: 5884 lbf (2669 kgf)
Breakout Force – Lift Arm: 4850 lbf (2200 kgf)
Lift Arm Path: Vertical

Power Train

Standard Tire Size: 12 – 16.5-10PR
Chain Size (ASA#): 100 ft.
Travel Speed (low): 7.4 mph (11.9 km/h)
Travel Speed (high): 11.8 mph (19.0 km/h)
Traction Force: 8494 lbf (3853 kgf)
Ground Clearance: 8.1 in. (207 mm)

Hydraulic System

Loader Hydraulic Flow: 20.9 gpm (79.0 min)
Loader Hydraulic Pressure: 3271 psi (230 kgf/cm2)
Auxiliar Hydraulic Flow (standard): 20.9 gpm (79 min)
Auxiliar Hydraulic Flow (high): 30.4 gpm (115 min)
Hydraulic Tank: 4.2 gal. (16 L)
Fuel Tank: 26.9 gal. (102 L)
Operating Weight (includes operator weight @ 175 lb., Open Cabin): 8245 lb. (3740 kg)
Operating Weight (includes operator weight @ 175 lb., Closed Cabin): 8466 lb. (3840 kg)
